G-NetLook Pro

Features G-NetLook Pro

G-NetLook Pro is an Android app for mobile network optimization.It can be used for visualization of mobile network, neighbor cells planning, antenna tilt adjustment and postprocessing of G-NetTrack Pro logfiles or measurements from your own database.This is one-time payment app.

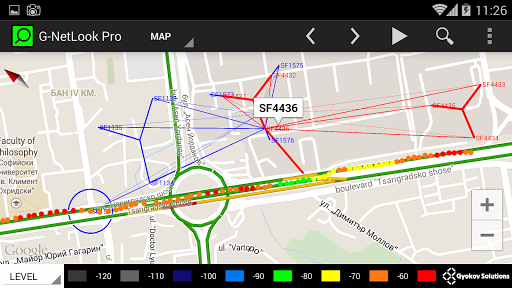

There are no monthly fees.See video demo here - https://www.youtube.com/watch?v=LgerYuEyDxk&list=PLeZ3lA81P9ETdfOnZK224oqIOIjJ_FBj0The app is useful for engineers working in Radio Planning and Optimization.If you are just interested in analyzing drivetest logfiles you can try G-NetView - https://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetviewproFeatures:1.Mobile network visualization- cell visualization on the map- neighbor cells visualization- cell data information display- neighbor relations analysis - distance and reciprocity check- cell searchIMPORTANT: Please note that to visualize serving and neighbors cell you need to load cellfile with cell locations.

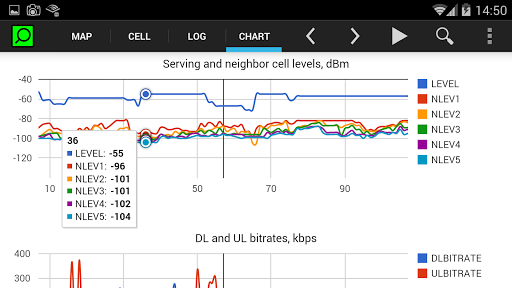

There is no magical way to guess exact cell locations.2.Postprocessing of G-NetTrack logfiles or measurements from your own database- logfile visualization on map- serving and neighbor cell lines visualization- thematic maps - LEVEL, QUAL, CELL, TECH, PCI/PSC/BSIC, SNR, BITRATE, SPEED, ALTITUDE, SERVING DISTANCE, BEARING, ANTENNA HEIGHT, ARFCN, PING, BITRATES, NEIGHBORS LEVEL, NEIGHBORS QUAL- measurement point info- measurements charts- measurements histogram statistics charts- export of measurement charts and statistics in html format to be viewed on desktop browser- logfile player- floorplan load for indoor measurements3.Neighbors Analyzer - can be used in two ways:- for automatic neighbor cells planning- for missing neighbor cells detectionSee video demo - https://www.youtube.com/watch?v=pIdhGWcuRJc4.
Tilt Optimizer - for antenna tilt automatic calculationSee video demo - https://www.youtube.com/watch?v=EtzUAp8czBk5.

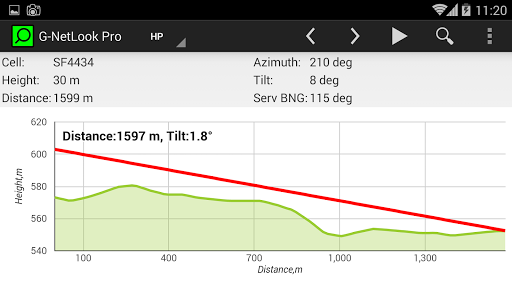

Antenna tilt adjustment - export of antenna beamwidth planes in kml format for visualization in Google Earth.See demo video - https://www.youtube.com/watch?v=-5N58M9lmjQ- cell coverage - kml export of one cell with option to change tilt, beamwidth and height - multi cell coverage - kml export of several cells - the kml is organized in technology and cell layer.
The kml file contains three planes: - central (max power) - angle=tilt - upper (-3dB) - angle = tilt-verticalbeamwidth/2 - lower (-3dB) - angle = tilt+verticalbeamwidth/26.
Exports- cell and neighbor relations export in text and kml format - See video demo - https://www.youtube.com/watch?v=P2VdXLba310- option to include missing neighbors in export7.
Online database data.
You can use your own database using G-NetReport Pro for Android or public G-NetReport database.- load measurements from online database- load cell data How to create your database and set the app to use it:- download scripts - http://www.gyokovsolutions.com/downloads/scripts/gnetlook_scripts.rar- for measurement data use G-NetReport Pro.
For reading logdata from database the script logdata.php is used.
- for cell data use create_celltable.txt script to create table called cells in your database.
For reading celldata from database the script sitedata.php is used.
the script in Settings - Database setup - https://gyokovsolutions.com/g-netlook-pro/Check also:G-NetLook Web - web app for visualization and analysis of mobile network - https://gyokovsolutions.com/G-NetLookG-NetReport Pro - similar to G-NetTrack Pro, but you can send reports in real time to your own online database and organize your measurement fleet of reporting phones - https://play.google.com/store/apps/details?id=com.gyokovsolutions.gnetreportproG-NetLook Pro - manual - http://www.gyokovsolutions.com/manuals/gnetlookpro_manual.phpDownload sample files for cells and neighbors:cellfile.txt - http://www.gyokovsolutions.com/downloads/G-NetLook/cellfile.txt
